快速搭建Kubernetes高可用集群二 Kubeadm 初始化集群

⚠️ 过时提示：本文写于 2020 年，基于 Kubernetes 1.18 + Docker 作为容器运行时。当前 K8s 已迭代至 1.30+，容器运行时已全面切换为 containerd，部分命令和配置已不适用。请以 Kubernetes 官方文档为准，本文仅作历史参考。

一、写作背景

近来工作需要，预将公司现有应用服务 Docker 化，并使用 Kubernetes 进行统一资源编排，现将部署过程记录一下。

Kubernetes 环境采用 Kubeadm 进行部署

Kubeadm 是一个工具，它提供了 kubeadm init 以及 kubeadm join 这两个命令作为快速创建 kubernetes 集群的最佳实践。
kubeadm 通过执行必要的操作来启动和运行一个最小可用的集群。它被故意设计为只关心启动集群，而不是准备节点环境的工作。同样的，诸如安装各种各样的可有可无的插件，例如 Kubernetes 控制面板、监控解决方案以及特定云提供商的插件，这些都不在它负责的范围。

Kubeadm可以做什么

kubeadm init 启动引导一个 Kubernetes 主节点
kubeadm join 启动引导一个 Kubernetes 工作节点并且将其加入到集群
kubeadm upgrade 更新 Kubernetes 集群到新版本
kubeadm config 如果你使用 kubeadm v1.7.x 或者更低版本，你需要对你的集群做一些配置以便使用 kubeadm upgrade 命令
kubeadm token 使用 kubeadm join 来管理令牌
kubeadm reset 还原之前使用 kubeadm init 或者 kubeadm join 对节点所作改变
kubeadm version 打印出 kubeadm 版本
kubeadm alpha 预览一组可用的新功能以便从社区搜集反馈

二、系列文章

三、 K8S 初始化

待系统初始化完成后，即可使用 kubeadm 执行 K8S 初始化。

3.1 查看镜像

查看系统所需镜像，如果没有则提前下载（在所有节点执行）。

# 查看所需镜像
[root@kube-m1 ~]# kubeadm config images list
W0812 10:05:20.074548   17861 configset.go:202] WARNING: kubeadm cannot validate component configs for API groups [kubelet.config.k8s.io kubeproxy.config.k8s.io]
k8s.gcr.io/kube-apiserver:v1.18.6
k8s.gcr.io/kube-controller-manager:v1.18.6
k8s.gcr.io/kube-scheduler:v1.18.6
k8s.gcr.io/kube-proxy:v1.18.6
k8s.gcr.io/pause:3.2
k8s.gcr.io/etcd:3.4.3-0
k8s.gcr.io/coredns:1.6.7

# 查看已有镜像
[root@kube-m1 ~]# docker images
REPOSITORY                           TAG                 IMAGE ID            CREATED             SIZE
k8s.gcr.io/kube-proxy                v1.18.6             c3d62d6fe412        3 weeks ago         117MB
k8s.gcr.io/kube-controller-manager   v1.18.6             ffce5e64d915        3 weeks ago         162MB
k8s.gcr.io/kube-apiserver            v1.18.6             56acd67ea15a        3 weeks ago         173MB
k8s.gcr.io/kube-scheduler            v1.18.6             0e0972b2b5d1        3 weeks ago         95.3MB
k8s.gcr.io/pause                     3.2                 80d28bedfe5d        5 months ago        683kB
k8s.gcr.io/coredns                   1.6.7               67da37a9a360        6 months ago        43.8MB
k8s.gcr.io/etcd                      3.4.3-0             303ce5db0e90        9 months ago        288MB

3.2 执行初始化命令

1、在任意一个 Master 节点执行，如无特别说明，均在 kube-m1.gxsk.uat 上执行
查看并根据实际情况修改 kubeadm-config.yaml 文件，该文件是系统初始化时自动生成的，如果前面没有出现失误的话，建议不用修改这个文件。

cat /etc/kubernetes/kubeadm-config.yaml

apiVersion: kubeadm.k8s.io/v1beta2
kind: ClusterConfiguration
kubernetesVersion: v1.18.6
controlPlaneEndpoint: 172.17.0.150:8443
imageRepository: k8s.gcr.io
etcd:
  external:
    endpoints:
    - https://172.17.0.151:2379
    - https://172.17.0.152:2379
    - https://172.17.0.153:2379
    caFile: /etc/etcd/ssl/etcd-ca.pem
    certFile: /etc/etcd/ssl/etcd.pem
    keyFile: /etc/etcd/ssl/etcd-key.pem
networking:
  podSubnet: 10.244.0.0/16

---
apiVersion: kubeproxy.config.k8s.io/v1alpha1
kind: KubeProxyConfiguration
mode: ipvs

2、执行初始化命令，完成系统初始化, --config 系统初始化配置文件， --upload-certs 自动生成 SSL 证书

kubeadm init --config /etc/kubernetes/kubeadm-config.yaml  --upload-certs

[root@kube-m1 ~]# kubeadm init --config /etc/kubernetes/kubeadm-config.ymal --upload-certs
W0812 11:00:36.277280   24872 configset.go:202] WARNING: kubeadm cannot validate component configs for API groups [kubelet.config.k8s.io kubeproxy.config.k8s.io]
[init] Using Kubernetes version: v1.18.6
[preflight] Running pre-flight checks
[preflight] Pulling images required for setting up a Kubernetes cluster
[preflight] This might take a minute or two, depending on the speed of your internet connection
[preflight] You can also perform this action in beforehand using 'kubeadm config images pull'
[kubelet-start] Writing kubelet environment file with flags to file "/var/lib/kubelet/kubeadm-flags.env"
[kubelet-start] Writing kubelet configuration to file "/var/lib/kubelet/config.yaml"
[kubelet-start] Starting the kubelet
[certs] Using certificateDir folder "/etc/kubernetes/pki"
[certs] Generating "ca" certificate and key
[certs] Generating "apiserver" certificate and key
[certs] apiserver serving cert is signed for DNS names [kube-m1.gxsk.uat kubernetes kubernetes.default kubernetes.default.svc kubernetes.default.svc.cluster.local] and IPs [10.96.0.1 172.17.0.151 172.17.0.150]
[certs] Generating "apiserver-kubelet-client" certificate and key
[certs] Generating "front-proxy-ca" certificate and key
[certs] Generating "front-proxy-client" certificate and key
[certs] External etcd mode: Skipping etcd/ca certificate authority generation
[certs] External etcd mode: Skipping etcd/server certificate generation
[certs] External etcd mode: Skipping etcd/peer certificate generation
[certs] External etcd mode: Skipping etcd/healthcheck-client certificate generation
[certs] External etcd mode: Skipping apiserver-etcd-client certificate generation
[certs] Generating "sa" key and public key
[kubeconfig] Using kubeconfig folder "/etc/kubernetes"
[endpoint] WARNING: port specified in controlPlaneEndpoint overrides bindPort in the controlplane address
[kubeconfig] Writing "admin.conf" kubeconfig file
[endpoint] WARNING: port specified in controlPlaneEndpoint overrides bindPort in the controlplane address
[kubeconfig] Writing "kubelet.conf" kubeconfig file
[endpoint] WARNING: port specified in controlPlaneEndpoint overrides bindPort in the controlplane address
[kubeconfig] Writing "controller-manager.conf" kubeconfig file
[endpoint] WARNING: port specified in controlPlaneEndpoint overrides bindPort in the controlplane address
[kubeconfig] Writing "scheduler.conf" kubeconfig file
[control-plane] Using manifest folder "/etc/kubernetes/manifests"
[control-plane] Creating static Pod manifest for "kube-apiserver"
[control-plane] Creating static Pod manifest for "kube-controller-manager"
W0812 11:00:39.488616   24872 manifests.go:225] the default kube-apiserver authorization-mode is "Node,RBAC"; using "Node,RBAC"
[control-plane] Creating static Pod manifest for "kube-scheduler"
W0812 11:00:39.489727   24872 manifests.go:225] the default kube-apiserver authorization-mode is "Node,RBAC"; using "Node,RBAC"
[wait-control-plane] Waiting for the kubelet to boot up the control plane as static Pods from directory "/etc/kubernetes/manifests". This can take up to 4m0s
[apiclient] All control plane components are healthy after 34.011506 seconds
[upload-config] Storing the configuration used in ConfigMap "kubeadm-config" in the "kube-system" Namespace
[kubelet] Creating a ConfigMap "kubelet-config-1.18" in namespace kube-system with the configuration for the kubelets in the cluster
[upload-certs] Storing the certificates in Secret "kubeadm-certs" in the "kube-system" Namespace
[upload-certs] Using certificate key:
76ceeda43cf2613a7657378622c586f507a425a12c62c9b2a8bfb5308b0bb9b7
[mark-control-plane] Marking the node kube-m1.gxsk.uat as control-plane by adding the label "node-role.kubernetes.io/master=''"
[mark-control-plane] Marking the node kube-m1.gxsk.uat as control-plane by adding the taints [node-role.kubernetes.io/master:NoSchedule]
[bootstrap-token] Using token: 8qrlzv.faq5cmqv7g3gp6cg
[bootstrap-token] Configuring bootstrap tokens, cluster-info ConfigMap, RBAC Roles
[bootstrap-token] configured RBAC rules to allow Node Bootstrap tokens to get nodes
[bootstrap-token] configured RBAC rules to allow Node Bootstrap tokens to post CSRs in order for nodes to get long term certificate credentials
[bootstrap-token] configured RBAC rules to allow the csrapprover controller automatically approve CSRs from a Node Bootstrap Token
[bootstrap-token] configured RBAC rules to allow certificate rotation for all node client certificates in the cluster
[bootstrap-token] Creating the "cluster-info" ConfigMap in the "kube-public" namespace
[kubelet-finalize] Updating "/etc/kubernetes/kubelet.conf" to point to a rotatable kubelet client certificate and key
[addons] Applied essential addon: CoreDNS
[endpoint] WARNING: port specified in controlPlaneEndpoint overrides bindPort in the controlplane address
[addons] Applied essential addon: kube-proxy

节点控制面板访问方式,在节点上执行以下命令后，即可在命令行使用 kubectl 访问 k8s 集群。

# Your Kubernetes control-plane has initialized successfully!

# To start using your cluster, you need to run the following as a regular user:

mkdir -p $HOME/.kube
sudo cp -i /etc/kubernetes/admin.conf $HOME/.kubeconfig
sudo chown $(id -u):$(id -g) $HOME/.kube/config

为集群部署网络

You should now deploy a pod network to the cluster.
Run "kubectl apply -f [podnetwork].yaml" with one of the options listed at:
  https://kubernetes.io/docs/concepts/cluster-administration/addons/

添加其它主节点
You can now join any number of the control-plane node running the following command on each as root:

kubeadm join 172.17.0.150:8443 --token j2tz5v.c9dyz9jjgls029jf \
  --discovery-token-ca-cert-hash sha256:09843b8e9570c970ba306a80153fd1743588300e6f0d25312f6b886ac3a34d5c \
  --control-plane --certificate-key 8d2e7c1171cbb579ea9915ce81493d9ee4a8a384a2dd73dd17752aa8150f726e

添加工作节点
Then you can join any number of worker nodes by running the following on each as root:

kubeadm join 172.17.0.150:8443 --token j2tz5v.c9dyz9jjgls029jf \
    --discovery-token-ca-cert-hash sha256:09843b8e9570c970ba306a80153fd1743588300e6f0d25312f6b886ac3a34d5c

节点添加完成后，执行 kubectl get nodes 查看节点状态

[root@kube-m1 ~]# kubectl get nodes
NAME               STATUS   ROLES    AGE     VERSION
kube-m1.gxsk.uat   Ready    master   16m     v1.18.6
kube-m2.gxsk.uat   Ready    master   11m     v1.18.6
kube-m3.gxsk.uat   Ready    master   8m19s   v1.18.6
kube-n1.gxsk.uat   Ready    <none>   3m51s   v1.18.6
kube-n2.gxsk.uat   Ready    <none>   3m51s   v1.18.6
kube-n3.gxsk.uat   Ready    <none>   3m50s   v1.18.6
kube-n4.gxsk.uat   Ready    <none>   3m54s   v1.18.6
kube-n5.gxsk.uat   Ready    <none>   3m51s   v1.18.6
kube-n6.gxsk.uat   Ready    <none>   3m53s   v1.18.6

执行kubectl get pods -A 查看所有 pod 状态

[root@kube-m1 ~]# kubectl get pods -A
NAMESPACE     NAME                                       READY   STATUS              RESTARTS   AGE
kube-system   coredns-66bff467f8-p99pw                   0/1     ContainerCreating   0          15m
kube-system   coredns-66bff467f8-vv6cb                   0/1     ContainerCreating   0          15m
kube-system   kube-apiserver-kube-m1.gxsk.uat            1/1     Running             0          16m
kube-system   kube-apiserver-kube-m2.gxsk.uat            1/1     Running             0          10m
kube-system   kube-apiserver-kube-m3.gxsk.uat            1/1     Running             0          6m36s
kube-system   kube-controller-manager-kube-m1.gxsk.uat   1/1     Running             0          16m
kube-system   kube-controller-manager-kube-m2.gxsk.uat   1/1     Running             0          10m
kube-system   kube-controller-manager-kube-m3.gxsk.uat   1/1     Running             0          6m31s
kube-system   kube-proxy-22tp5                           1/1     Running             0          15m
kube-system   kube-proxy-2dxc9                           1/1     Running             0          3m28s
kube-system   kube-proxy-9qjbm                           1/1     Running             0          3m29s
kube-system   kube-proxy-h7dhf                           1/1     Running             0          3m29s
kube-system   kube-proxy-hmh7v                           1/1     Running             0          3m29s
kube-system   kube-proxy-pr5bc                           1/1     Running             0          10m
kube-system   kube-proxy-rddnk                           1/1     Running             0          3m32s
kube-system   kube-proxy-v7sbb                           1/1     Running             0          3m31s
kube-system   kube-proxy-zn55w                           1/1     Running             0          7m56s
kube-system   kube-scheduler-kube-m1.gxsk.uat            1/1     Running             0          16m
kube-system   kube-scheduler-kube-m2.gxsk.uat            1/1     Running             0          10m
kube-system   kube-scheduler-kube-m3.gxsk.uat            1/1     Running             0          6m45s

命令执行后显示 coredns 未处于Running状态，是因为未安装网络插件。

3.3 安装网络插件

网络插件使用 Coreos 的 flannel 插件配置文件下载地址是：github-coreos-flannel

flannel 的 github 项目地址

下载后使用 kubectl apply -f /etc/kubernetes/kube-flannel.yaml 安装

kubectl apply -f /etc/kubernetes/kube-flannel.yaml

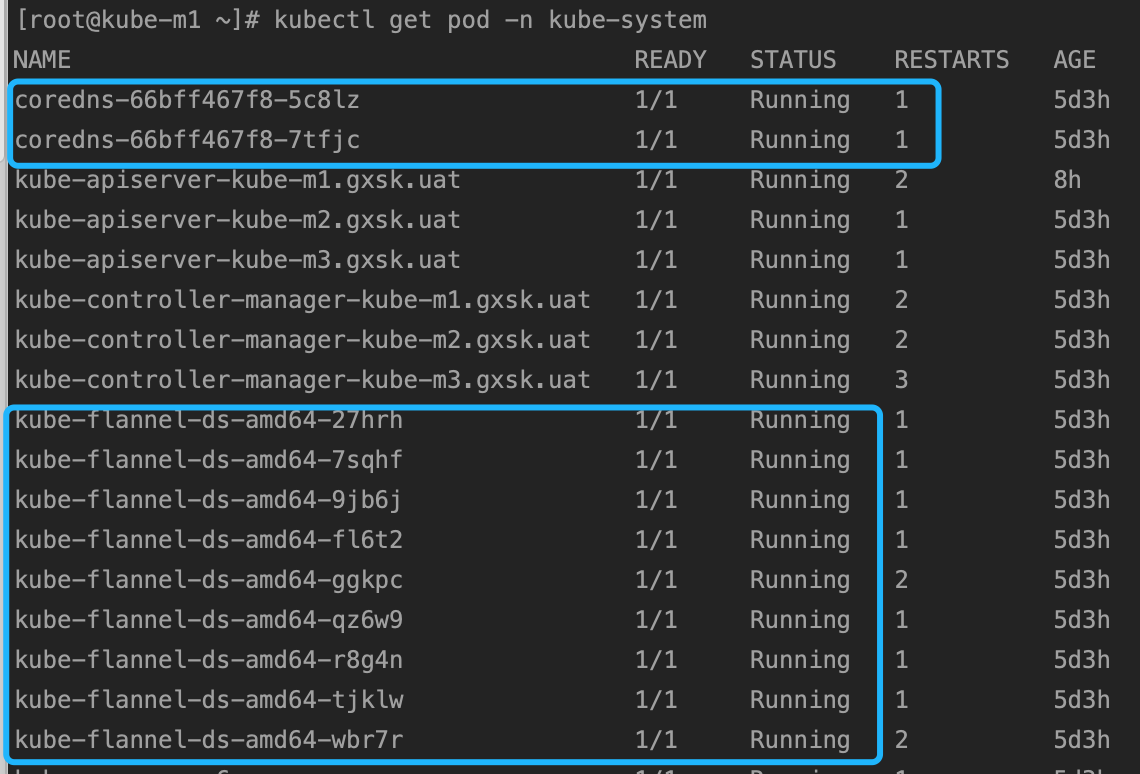

Flannel pods

网络插件安装后，发现 coredns 这个 pod 有两个副本，都部署在 kube-m1 这台服务器上，为了保证高可用，我们可以使用 scale 命令重新部署一下 pod。

# 先将 pod 数量设置为0 或者 1，然后添加到指定数量。

kubectl -n kube-system scale --replicas=0 deployment coredns

kubectl -n kube-system scale --replicas=9 deployment coredns

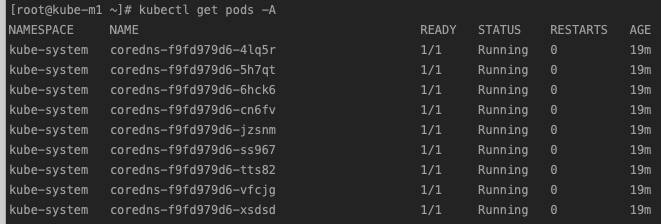

Coerdns Pod

至此，一个基本的 kubernetes 集群就搭建完毕了，为了可视化管理、服务暴露、集群监控等，我们需要对集群进行下一步升级。
